Thanks Mike... :-)

Peace,
Rich_Art. ;-)

Another technic one to translate :)

Really cool overview and graphics Mike! Thanks for preparing all those images that show the settings used right on each one, that is a great guide!

I want to add a kind of "View mode" switch in the UI that will make it easier to switch between some different lighting and display styles, probably including some different kinds of diagnostic display modes as well as different lighting styles.

- Michael

Thanks Michael, I hope my examples serve to add even more enjoyment to the MoI user's modeling experience.

I couldn't really find too many (if any) examples out there of what could be done with the lighting, so I took it upon myself to 'grope' around the settings.
The option values can be so fickle with a lot of interplay.

Future modes and UI settings, now I'm really excited! :-) We may yet get Zebras!





Showroom Shine:

script: /* Set lighting options for Showroom Shine */ var v = moi.view; v.lightingStyle = 'LessFill'; v.specularHighlights = true; v.specularBrightness = 0.3; v.specularFocusSize = 1.0; v.metallicLighting = true; v.fixedLightPositions = true; v.customKeyLightLevel = 0.0; v.customFillLightLevel = 0.0;

Wax:

script: /* Set lighting options for Wax */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 0.9; v.specularFocusSize = 1.5; v.metallicLighting = false; v.fixedLightPositions = true; v.customKeyLightLevel = 0.08; v.customFillLightLevel = 0.982;

Wetsuit:

script: /* Set lighting options for Wetsuit */ var v = moi.view; v.lightingStyle = 'Hemispheric'; v.specularHighlights = true; v.specularBrightness = 0.19; v.specularFocusSize = 1.5; v.metallicLighting = false; v.fixedLightPositions = true; v.customKeyLightLevel = 0.0; v.customFillLightLevel = 0.0;

Additional (More Sinister) lighting combinations added Oct. 2013...

Enamel:

script: /* Set lighting options for Enamel */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 0.37; v.specularFocusSize = 0.89; v.metallicLighting = false; v.fixedLightPositions = false; v.customKeyLightLevel = 1.0; v.customFillLightLevel = 0.14;

Clear Coat:

script: /* Set lighting options for Clear Coat */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 0.17; v.specularFocusSize = 1.0; v.metallicLighting = false; v.fixedLightPositions = true; v.customKeyLightLevel = -1.0; v.customFillLightLevel = 2.0;

High-Gloss Plastic:

script: /* Set lighting options for HighGloss Plastic */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 0.16; v.specularFocusSize = 0.62; v.metallicLighting = false; v.fixedLightPositions = false; v.customKeyLightLevel = -0.6; v.customFillLightLevel = 2.0;

Ornament:

script: /* Set lighting options for Ornament */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 200.0; v.specularFocusSize = 3.0; v.metallicLighting = true; v.fixedLightPositions = false; v.customKeyLightLevel = 1.07; v.customFillLightLevel = -0.6;

Onyx:

script: /* Set lighting options for Onyx */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 90.0; v.specularFocusSize = 1.0; v.metallicLighting = false; v.fixedLightPositions = false; v.customKeyLightLevel = 0.4; v.customFillLightLevel = -0.4;

Velvet Night:

script: /* Set lighting options for Velvet Night */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 5000.0; v.specularFocusSize = 6.0; v.metallicLighting = false; v.fixedLightPositions = false; v.customKeyLightLevel = -4.0; v.customFillLightLevel = 1.0;

Zebra Stripe: (One Curvy Stripe ;-)

script: /* Set lighting options for Zebra Stripe */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = true; v.specularBrightness = 200.0; v.specularFocusSize = 0.0; v.metallicLighting = true; v.fixedLightPositions = false; v.customKeyLightLevel = 0.6; v.customFillLightLevel = -0.5;

Solid:

http://k4icy.com/Moi3D_Tutorials/LO_Solid_fr.jpg (dans le français)

script: /* Set lighting options for Solid */ var v = moi.view; v.lightingStyle = 'CustomLevels'; v.specularHighlights = false; v.specularBrightness = 0.0; v.specularFocusSize = 0.0; v.metallicLighting = false; v.fixedLightPositions = false; v.customKeyLightLevel = 0.0; v.customFillLightLevel = 10.0;

A simple solid shading with no specular or shadows. Used for applications where a (high pixel size) screen capture of the Moi view port can be Color Ranged in Photoshop or vector auto-traced in a layout program like CorelDRAW or Illustrator.
I will often create 3-D type or basic objects to be used in my graphic design, assigning unique color values to the sides and faces.

(Moi screen capture, auto-traced in vector layout program and assigned fills and outline strokes.)

For more complex graphics requiring edge detail I prefer to use Moi's PDF export feature, but PDF export does not (cannot) produce clean solid representative closed vector (EPS) faces that are view-dependent. This method has been a quick solution, and all that's required is to us Moi's screen capture script set for higher pixel dimensions.

Hi Mike,

> Future modes and UI settings, now I'm really excited! :-) We may yet get Zebras!

Yup, at least I think that is a good plan for where Zebra could go.

Also I'd like for each mode to be able to override more than just the lighting, like be able to temporarily override style colors so that you could switch everything to a "Shiny blue" mode for just a minute to look at things and then back to regular display again.

- Michael

Nice Mike.

Michael, is there a script option that can be tucked into those scripts Mike just made that would have them "toggle"... So a return to default?

Hi Burr,

> Michael, is there a script option that can be tucked into those scripts Mike just made
> that would have them "toggle"... So a return to default?

Yup, that's possible, here's a script that will do that:

script: /* Toggle lighting options */ var settings = { lightingStyle: 'Default', specularHighlights: true, specularBrightness: 0.5, specularFocusSize: 0.5, metallicLighting: true, fixedLightPositions: false }; for ( var propname in settings ) { var val = ''; try { val = moi.command.getOption( 'ls_' + propname ); } catch(e) {} if ( val !== '' ) { moi.view[propname] = val; val = ''; } else { val = moi.view[propname]; moi.view[propname] = settings[propname]; } moi.command.setOption( 'ls_' + propname, val ); }


The settings come from the chunk that says: var settings = { lightingStyle: 'Default', specularHighlights: true, ... } To make a new batch of settings change just the value to the right of the : like if you want it to have no specular highlights make that part say specularHighlights: false

This will only toggle things within the same program session - don't exit MoI with it set to the alternate state or else that will get saved as your new default at exit time and so you won't be able to toggle it back to the old default when you launch next time.

- Michael

That's convenient Michael,

The approach I used was to take all 12 custom settings above, and I programmed them as Alt+F1 - Alt+F12, since I had no designation for any Alt keys using the 'F' keys.

Now, I've been having a little fun selecting each lighting mode like a buffet.

F1 would be my 'good ol' trusty'.


I may implement a portion to my scripts that tells me at the bottom, what custom mode it is. As I kind of forgot what each was.
Your proposed quick button thingies will certainly allow for easier selection.

Thanks Phlatt5th!

Download here:


http://moi3d.com/forum/get_attachment.php?webtag=MOI&hash=8a6a02426a8fd81b41eda15ea9a6f97e&filename=Moi3D_Lighting%20options_Scripts.pdf


for a handy .PDF reference containing the above Lighting Options examples.

Just a trivial question :)
On what key press for "Toggle" the Michael Script above, the key of the Shortcut choosen?

Hi Pilou,

> On what key press for "Toggle" the Michael Script above, the key of the Shortcut choosen?

Yup, it's whatever key you set the shortcut to be on (the key you put in the left-hand "Key" column for the shortcut).

Then when you push the shortcut one time it will change to that particular lighting style, when you push the same shortcut key a second time it will switch back to the default lighting.

- Michael

Ok

This script take only one more than the default ?
Or the 12 above by mike ?

Hi Pilou,

> This script take only one more than the default ?
> Or the 12 above by mike ?

The script that I posted above just takes one particular group of settings, you can set it to any one of the 12 that Mike has shown above. Then when you trigger it, it will switch between that mode and back to the default mode again when you trigger it a second time.

- Michael

No possibility to chain the 12 in one line?

Hi Pilou,

> No possibility to chain the 12 in one line?

It would be possible - it would need a bigger script with all the various settings in it of course.

Instead of investing the time writing a big script like that I'd rather wait until I can focus more properly on making a UI based control for switching different modes, a single enormous script is kind of hacky.

It would be generally similar to that existing one if you wanted to work on coding one though!

- Michael

No problem
It was just by curiosity :)

Thank you Majik.

Very handy indeed.

;-)

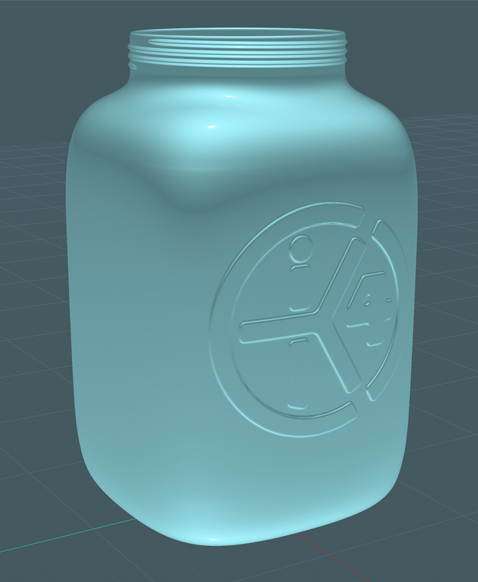

A small render for a Mason jar model:



For that extra bit of inspiration, I modeled it while my lighting options were set for the "Glass" presets.

Awesome thread!!

+1
