Curious that was not yet existing! :)

So... ) Sorry in French but...
No need to show Points as shown in the video following!
You can click anywhere in the 3D Space!!!
And in any view!!!

Will be fine if the actual "Circle" eraser can be any form!



So...when you see the vertical "Circle eraser" it's because i click in another view than the 3D one! :)

A temporary French one! ;)
Before without doubt some improvements fonctions of the Command!
https://moiscript.weebly.com/eraser.html

A terrific universal tool!
Waiting the use of any form as actual "circular" !

With curves! :)

Seems there is a little glitch with the Points!
All are "erased" in the same time! :)

WOW! great tool Michael currently working on a laser cut screen was looking for an easy way to handle the splits in the screen to hold bits together this tool with Max's FATLINES a powerful combo.

Ill post the screen result once complete.

Any chance this tool can make its way into the main toolset in future release?

Thanks
Alex.

Hi Alex,

re:
> Ill post the screen result once complete.

It will be cool to see it!


> Any chance this tool can make its way into the main toolset in future release?

Well, it's a big goal to keep the main program to not get bloated so probably no.

- Michael

As shown here the Moi Export PDF don't takes the circles as a connected curves...
Will be fine to have something who makes all surfaces visible in any view (even empty faces) as connected!
...of course in this particular image i can redraw manually 3 circles...but...
(the Moi figure has just one default color)
https://moiscript.weebly.com/uploads/3/9/3/8/3938813/gag.pdf

Hi Pilou,

re:
> As shown here the Moi Export PDF don't takes the circles as a connected curves...

Yes, that's normal, particularly for the case you show where the circles are holes.

What are you trying to do with those circles where you want them to be a closed curve?

- Michael

Always the same! :)
Export to Affinity V1 for have only separated closed curves (or surfaces ) for any 2D design!
seems Aff V2 resolves now from no closed curves...(as shown on my previous video)
https://moiscript.weebly.com/uploads/3/9/3/8/3938813/fullsizerender.mov

It's legitim to have from any 3D view of a mechanical piece from a 3D prog only faces visible for any graphic post production...

In fact a sort of internal Contour Silhouette for each surface...

Hi Pilou, for the circles that you showed above:
http://moi3d.com/forum/index.php?webtag=MOI&msg=10957.27

Those circles are holes. The nature of a hole is that there isn't anything in it, so it would be kind of strange to fill in those.

- Michael

Yes but its was just for take something and give the possibility in Aff 1 to fill anything...

I believe i can make something like this: Moi Export PDF "Project view 3D"
then reload this PDF inside MOi = i have a Plane of the visible wire!
General Trim by a Plane = i have each zone as a surface
Rest to find something who surrond each surface by a curve!

to be continue...

maybe this from the above! :)
Explode Move = free surfaces in the space
Select Edges and move them = I have only closed Curves !
UnMove
UnExplodeMove
Export PDF

here just export PDF for see if the closed curves works! :) (before the UnExplodeMove)

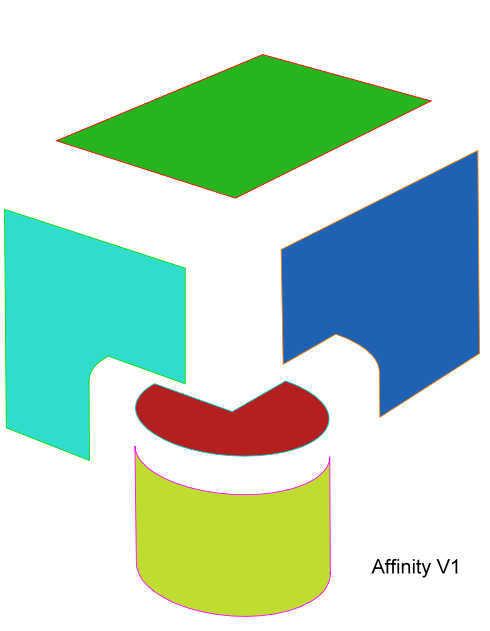

Filling in Aff 1 works now like a charme!


I believe i am near an easy process! :)

Tips
Better if the original objects are Boolean Union and generator vertical line of Cylinder hidden

The complete easy final Process! :)
Of course each closed curve can be Style colorized and Named inside Moi!
for have directly named Layers inside Affinity V1! (no made here)

With this http://moi3d.com/forum/index.php?webtag=MOI&msg=3334.2
you can name automatically some Styles (so futur Layers) as you want
for have something more elaborated than "Default" following! :)
( Calque = Layer in French)

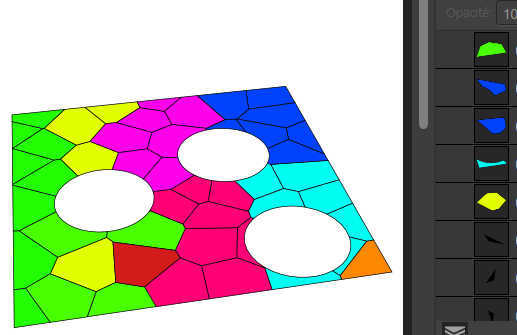

Intersection with a plane of the Imported PDF






else i have refound a Close Multiple Curves Command :)
https://moi3d.com/forum/index.php?webtag=MOI&msg=2752.1
