I don't know how to do this. Ring "A" should fit onto loop "B" and come out like a shower hose.

Thanks.

Attachments:
sec.3dm

---

I did a Transform > Array > Curve of about 650 items and it looked OK.

If you want a one-piece item, then you would have to duplicate about 650 of the rings in a straight line, Join them together and then use MoI's Flow tool to fit that surface to the curve.

Martin.

---

Hi
Anyway, I've modified part "A" as well as the route, and this way I've managed to reduce it to 450.

Thank you.

---

Hi Martin

How can I convert the route curve to its equivalent straight line length, in order to do the Flow

---

For convert a curve(s) to polyline(s)

Select nothing
Call ReconstructCurve (Not Rebuild ! )
Construct /Mode Polyline
Select the curve (s)
run

If the number of points is not good for you
Enter the number of points wished
Done
Et voilà ;)

PS At the end that is a curve "Polyline" Ask Details (right Up page) for see it!the forum are

Not sure if links that you find on the forum are accessive so my one! :)
https://moiscript.weebly.com/uploads/3/9/3/8/3938813/reconstructcurve.zip

so unzip and put inside folder Moi / commands

---

Hi Booleano,

re:
> How can I convert the route curve to its equivalent straight line length, in order to do the Flow

You don't need to match exact lengths, instead use the "Stretch" checkbox option in the Flow command, that will match the full length of the base curve onto the full length of the target curve.

But if you still want to make a line to match the length of an existing curve you can get the curve's length by selecting it, then click "Details..." and then Curve properties > Length. Then draw a line and paste in the length to activate distance constraint.

There is also a plugin called UnwrapCurve that you can install that will generate a line of the selected curve's length for you:
https://moi3d.com/forum/index.php?webtag=MOI&msg=5136.1

- Michael

---

Select the route curve, click on its Details... in the top right corner of the screen and click the Calc button to find the length. Then draw a straight line of similar length. Flow can accommodate a variation in length if need be.

You might try a different (simpler) way of making the hose, because I don't think it will be a trivial thing to join all those pieces into one item, although I haven't tried to do it myself.

Martin.

---

I had not open your file! :)
Now i have seen it! :)
So my solution was maybe not adapted! :)
But you can keep this function for another thing! :)

You can also use another tricky function : my favorite for this sort of thing! :)

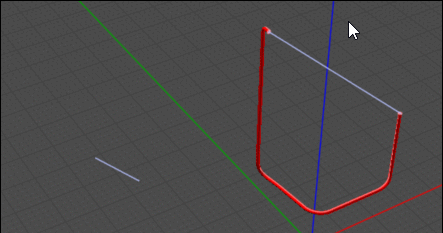

The Transform /Orient / Line-Line
Say you know some line's length of the original object
Here line from Center diameter of each extremities of your object
Draw your final length wished

You have direct result Line - line / Uniform with 4 clicks :)

---

Hi Martin

They're now joined, and I can use MoI's Flow tool to adjust that surface to the curve.
I'm attaching the file.
Thank you.

Thanks.

Attachments:
secA.3dm

---

Why use Flow ?
Array / Curve is not sufficient ?

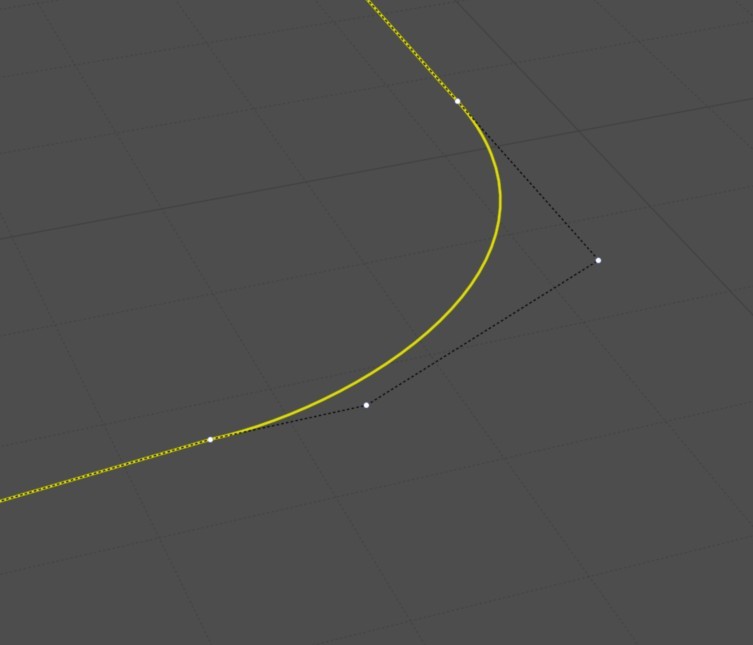

PS Your curve is not clean there is angle inside!
Control points are not well aligned...so any operations will be mismatched...

---

Hi Pilou

This is how I have it done, but I thought that instead of 450 (the base ring is just the outline) rings, putting it all together would have very little weight in memory.

How do you know how much memory it consumes?

Thanks again for your help

---

I don't know but the Flow was for me too long...i don't see the result in reasonable time for my old computer ...the Array curve is instant! :)

---
