Hi,

I'm a new MoI user and new to 3D in general, so my apologies for anything that should be obvious that I've overlooked.

I have created a model in MoI, but when I import it into PrusaSlicer or MeshMixer, they both say that the model has errors. In PrusaSlicer, vertices and triangles and facets are reversed, backwards, or something else. MeshMixer's analysis points to a ton of things too, but automagically fixing them causes most of my model to disappear. I have tried using the "Flip" command to correct all the faces, but that didn't fix the other issues.

I have attached my file for your reference.

Thanks,
tofuji

Hi tofuji, the STL format is only meant to contain one single solid object in it, but your file contains 54 different objects that are partially overlapping each other.

You'll need to get the model cleaned up so that the entire model that you want to export to STL is just one single solid object.

Probably the cleanest way to do that with your current model is to select everything, then run Edit > Separate to break it into individual surfaces, then click on surfaces that are next to each other and after you've built up the selection use Edit > Join to glue them together. That's what I did with the attached 3DM file.

When you select the object, you want the object type to show as "Solid":



If it says it's a "Joined surface" or "Surface" that means it has some areas with a hole where edges are not joined between 2 surfaces.

- Michael

Your module must be like this

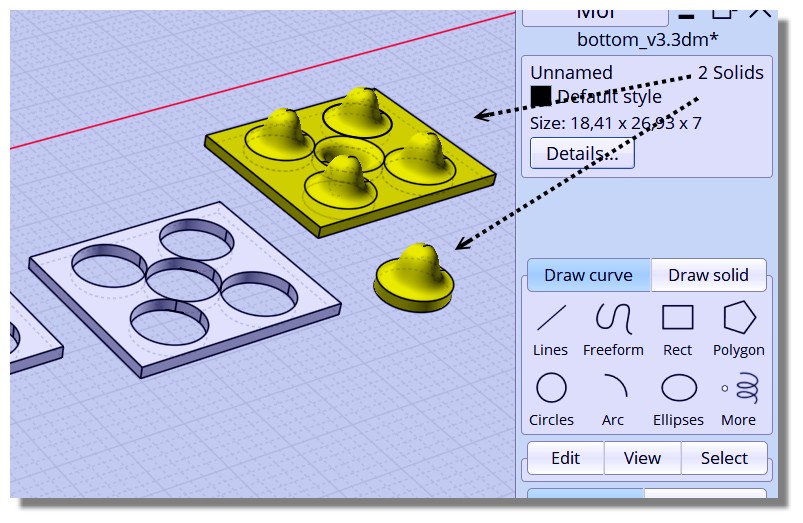

Then take a box Intersected with "Cylinders"
and put the modules inside :)

No problem for Boolean them!

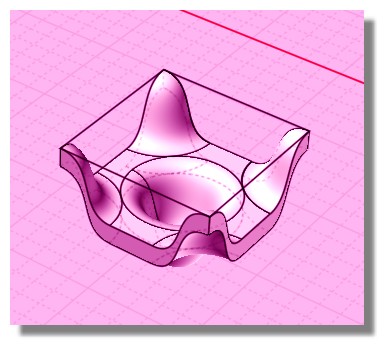

Make any Array as you want then make a general Booelan Diff with a square accross some middle of Modules
for have same object that you post...

Thank you for your informative answer, Michael. I had tried doing separate/join, but I had selected everything using a selection box. I guess I have to more carefully choose only the surfaces for the solid.

Thanks again!

Thank you,, Frenchy. That's a great way to do it. I'll be sure to try your technique. Your help is much appreciated!

Hi tofuji, you're welcome! yes for this case here there are various internal surfaces that you don't want to be part of the final object but a window select will get those too.

- Michael

If you running windows 10 use 3d Builder ( some builds have dropped it but you can still download for free through Microsoft Store) it has auto repair on opening STL and OBJ files - it was built on NETFABB which Autodesk bought - Microsoft then pealed some of the repair out tools out of NETFABB and built into the 3d Builder I use it all the time as quick cleanup tool it will heal most files with problems.
