Cone and Conical Frustum Unwrap  1-20  21-28

Next
 From:  bemfarmer
6175.1
Looked into unwrap for a cone, and used MoI to make a sketch of some of the mathematics.
Unwrap gives the circumference length of a circle. Flow of the unwrap line to a circle with the slant height radius "s" creates the unwrapped base.
The formulas are also said to work for cylinders. The conical frustrum is a cone with the "top" cut off.

Two references are archaeological. The papers are free on the internet.

Unwrapping Highly-Detailed 3D Meshed of
Rotationally Symmetric Man-Made Objects
Bastian Rieck, Hubert Mara, and Susanne Kr..omker

Rollouts of Fine Ware Pottery using High Resolution 3D Meshes
S. Bechtold and S. Krömker and H. Mara and B. Kratzmüller

Unwrapping Curves from Cylinders and Cones
Tom M. Apostol and Mamikon A. Mnatsakanian

May try to do a script.

- Brian






EDITED: 19 Sep 2013 by MICHAEL GIBSON


  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.2 In reply to 6175.1
Hi Brian,

Very cool! a script would be an interesting project, meanwhile here's the method I was taught whilst training as a draughtsman on the drawing board way way back, it's the graphical method.

If anyone needs more detail I can make a video.



Cheers
~Danny~

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.3
Unwrapping truncated cone solution, again using the graphical method.



Cheers
~Danny~

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  BurrMan
6175.4 In reply to 6175.3
Here's me....

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  bemfarmer
6175.5 In reply to 6175.3
Thanks Danny.
Excellent graphical method. Should help doing a script.

So the apex of the cone is a single point for both wrapped and unwrapped objects.
The apex is obtainable by user selection for a cone, or by intersection for a frustrum or some other
portion of a cone.
I wonder what portion of a cone, or truncated cone, can be extracted by MoI, just by selecting the whole cone.
There is the "seam," the base radius and/or circle, maybe the apex, edges, heights...

Or else have the user select the different parts...

Handles curves on the cone.
I'd like to try and use MoI Nurbs commands as much as possible, and be able to apply it to cone-like objects?
Also apply it to intersections with other shapes, like pipe ducts?
But first, just handle the basic shapes.

- Brian
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Frenchy Pilou (PILOU)
6175.6
@Danny
About the "troncated" Method
Does the "blue curve" is building by "Nurbs" curves along the intersections of the gride ?
How are the nature of the extremities of this curve ? No tangent, tangent,...

EDITED: 17 Sep 2013 by PILOU

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  bemfarmer
6175.7 In reply to 6175.6
Miscellaneous Curves on a cone can be mapped to an unwrapped version.
I do not know how this mapping would be done with NURBS, but imagine that there would be mathematical
equations to do so?

- Brian
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Michael Gibson
6175.8 In reply to 6175.7
Hi Brian,

> I do not know how this mapping would be done with NURBS, but imagine that
> there would be mathematical equations to do so?

There often isn't a simple exact NURBS curve result for calculations like this, instead usually it's a matter of sampling points and fitting a curve through those points, using enough sample points until the fit result is within a good enough tolerance of the "ideal" procedurally defined result.

- Michael
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Frenchy Pilou (PILOU)
6175.9
Unwrap curve + Function Flow can't make that automatically ? :)

EDITED: 17 Sep 2013 by PILOU

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.10 In reply to 6175.6
Hi Pilou,

> Does the "blue curve" is building by "Nurbs" curves along the intersections of the gride ?

Yes, I used Freeform curve through points.

> How are the nature of the extremities of this curve ? No tangent, tangent,...

I don't know I'll have to check it was something I did quickly without checking tangency, back in the day of the drawing board we used French Curves to draw through the intersection points.

-
~Danny~
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Michael Gibson
6175.11 In reply to 6175.9
Hi Pilou,

> Unwrap curve + Function Flow can't make that automatically ? :)

Unwrap curve makes lines, not arcs... So no that won't quite do the exact same job.

- Michael
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Karsten (KMRQUS)
6175.12 In reply to 6175.10
Hello DannyT,

I've made some experiments with the flow command. And it looks like that it works (I don't really checked it allready) . The important point is how the target surface is created. I've made it with the sweep with two arcs as rails (so it works only with truncated???- sorry about my english). So the U_V-parameters of the cone should be mapped to this targed.

Kind regards
Karsten



p.s.:Great software!!!
Attachments:

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Frenchy Pilou (PILOU)
6175.13 In reply to 6175.12
Cool Flow method! ;)
But Original Cone's edge is 13.4164079
Plan cone's Edge unwrap result is 13.4100000
Does this acceptable ?

I am always amazed that tools are named "French curves"! Have you some some info about that ?
In France we name these tool "Pistolet" (pistol, gun in English) or "Perroquet" (parot in English)
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.14 In reply to 6175.4
@ Burr, great method! nice video demo dude.
I'm still laughing when you said "I can't really follow that stuff, I've lost my mind"

Cheers
~Danny~
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.15 In reply to 6175.12
Hi Karsten,

> I've made some experiments with the flow command.

I like your method with flow it's very close.

Cheers
~Danny~
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  DannyT (DANTAS)
6175.16 In reply to 6175.13
Hi Pilou,

> I am always amazed that tools are named "French curves"!

That's what us English speaking Designers and Draughtsmen have always known them as http://en.wikipedia.org/wiki/French_curve.

There are flexible curves as well, which came later http://tinyurl.com/pzdbm2t

Cheers
~Danny~
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Frenchy Pilou (PILOU)
6175.17 In reply to 6175.16
Yes but I never find something about this curious origin of this particular name! :)
maybe the snail'shell curvature ? :)
A big mystery for me! :)

  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Mauro (M-DYNAMICS)
6175.18 In reply to 6175.17
In Italy we call it -Curvilineo-

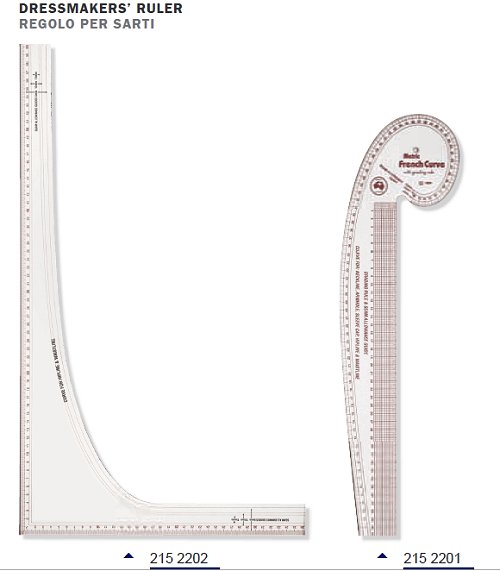

This tool to draw curves was used by taylors from long,long time



Actually they are still using to make or modify models or create shapes and angles of the body
There is a French curve (Curvilineo spalla-shoulder) to make upper part of the body(holes for neck,arms and belly)
there is also a Hip curve (Curvilineo fianchi-hips) to make lower part of the body (skirts,trousers)
Maybe...i say maybe...this taylor's tool was called French curves like a tribute to France..being,in the past,wordwide reference of fashion
Pardon monsieur Pilou,but nowadays references of fashion are changed,so.....we could call it "Italian curve" ;) :) :)
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  Frenchy Pilou (PILOU)
6175.19 In reply to 6175.18
Maybe a cool explanation! :)
But want some proof of that!

else some italian curves ;)

From
George L. Legendre’s book, Pasta by Design, provides the gourmet geometry behind a wide range of different pasta shapes from across Italy.
You’ll never look at Spaghetti Bolognese the same way again.





---
Pilou
Is beautiful that please without concept!
My Gallery
  Reply Reply More Options
Post Options
Reply as PM Reply as PM
Print Print
Mark as unread Mark as unread
Relationship Relationship
IP Logged

Previous
Next
 From:  BurrMan
6175.20 In reply to 6175.14
@Danny,
""""""I'm still laughing""""""""
:)


Thanks, that method is a result of a discussion here with Miguel Gibseone.......
