Not sure how to get that stamped out look to the shape, could use a little help. This is for a model that will be 3D printed in resin. I tried to show a typical model and then the actual louver shape from several angles.

Thanks!

Chris

.


.


.


.

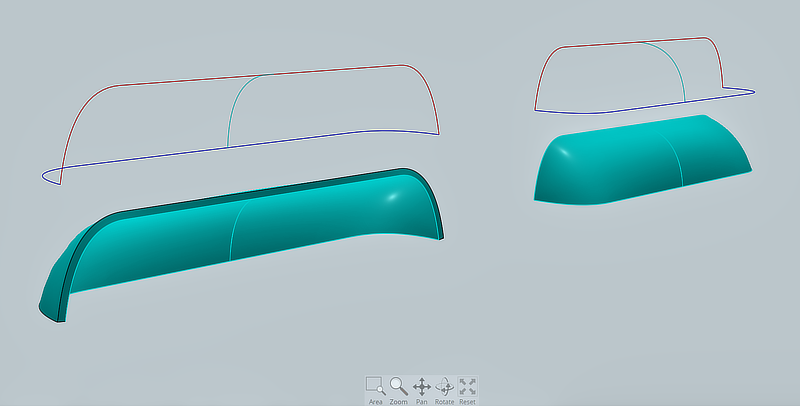

Draw three curves. The Red & Blue are at 90 degrees to each other. Their end points must touch.

Select all three curves and Network.

Select the surface and Shell if you need a Solid.

From there you can Array to make copies and then Boolean Union with your model.

Ed Ferguson

Using solid dies...

After looking at your reference again, I made another where I pre cut the vent die to be horizontal before the process. Then I did the cutup a different way too.

Thank you all for your help!

Chris

Remember this post! :)

http://moi3d.com/forum/messages.php?webtag=MOI&msg=4370.1
