Have just discovered this script and wondered if it can be modified to work on the inside of closed curves ( see my attached example) rather than the outside. Ideally I would want to preselect my point set rather than select individual points. I often use this to create cutting paths for my CNC machine.
Cheers

Colin

Hi Colin, is this one close to what you're looking for?

- Michael

EDIT: 5/29/2021 - updated attachment, added selecting vertices to target.

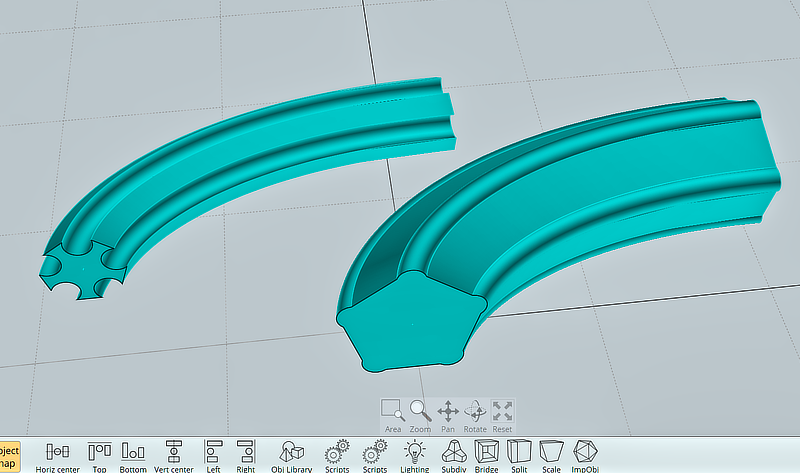

Inverse fillet script (normal & flipped) applied to a polygon and swept.

Always good to have one more tool in the MoI toolbox :)

Ed Ferguson

Does it possible to have an Inverse Fillet for volume ?

Hi Pilou,

re:
> Does it possible to have an Inverse Fillet for volume ?

Unfortunately no that's much more difficult.

- Michael

InverseFillet above is not the "Dog's bone" curve ?

Very cool form on repeating the function!

Seems curves must be coplanar ?

""""""""""""Have just discovered this Insert Circle script""""""""""""""""

What script is that please?

Thanks.

i suppose this one! ;)
http://moi3d.com/forum/index.php?webtag=MOI&msg=9266.93


The dog's bone! :)

Aha!!!! 2019....

I was possibly in a Morphine haze At the time....

Thanks FP.

Hi Michael,
Can you modify InverseFillet to allow for picking the spots, like the InsertCircle script?

It is currently a global selection.

That would be banner!

Hi Burr, do you mean selecting points for which corners to apply it onto like regular fillet?

- Michael

Thanks Michael, thats brilliant. BurrMan's suggestion of being able to select the points to fillet would be awesome as some points need to be treated separately.

Colin

Hi Michael,
"""""""""""""""" do you mean selecting points for which corners to apply it onto like regular fillet?""""""""""""""""

Well, that would work, but the other script just has access to the various pick points and just inserts as you click.

Hi Burr,

re:
> Well, that would work, but the other script just has access to the various
> pick points and just inserts as you click.

Wouldn't that be the same thing as InsertCircle then?

- Michael

Well, with the inversion added. Insert circle only goes 1 way...

Let me check

Yup, just checked.

So insert circle has the actual picking ability, but it only does it additively. It would need the inverse added to it.

or

Inverse fillet does have the flip option, for adding or subtracting. But it doesn't have the ability to pick where this happens. It just globally applies it to closed curve "corner points".

The pick point method doesn't even need a corner point. You can place it "Anywhere".

So I guess the optimal would be the InsertCircle command with the flip option added in...

Hi Colin, I've updated the inverse fillet in the attachment above so you can select which vertices to target.

- Michael

Hi Burr, I've updated the InsertCircle script to have a "Flip" option now:
http://moi3d.com/forum/index.php?webtag=MOI&msg=9266.93

- Michael

Cool additions!
