Hi Brian, yes dimensions can be created by a script.

There are 8 new factories for that: dimhorizontal, dimvertical, dimaligned, dimradius, dimangle, leader, annotationtext, arrow3d.

dimhorizontal, dimvertical, and dimaligned all create a linear dimension object, and they all have 3 inputs:
0: Frame - base plane for dimension with origin at first point
1: Point - end point
2: Point - location point

dimradius has 4 inputs:
0: Object - arc or circle curve
1: String - type of radial dimension, either "Radius" or "Diameter"
2: Point - arrow point on curve
3: Point - text point

dimangle has 4 inputs:
0: Frame - center of angle
1: Point - start point
2: Point - end point
3: Point - location point

leader has 2 fixed inputs:
0: Frame - plane with origin at arrow point
1: String - text
2+ : Point inputs added

annotationtext:
0: Base frame
1: Text

arrow3d - creates a leader with 2 points with the "rotate arrow towards viewer" property set on it, this is for James to use in the node editor for a vector direction display. It automatically creates a plane for the leader given 2 points.
0: start point
1: end point

Here's an example using arrow3d:

	var startpt = moi.vectorMath.createPoint(5,5,5);
	var endpt = moi.vectorMath.createPoint(10,10,10);
	var f = moi.command.createFactory( 'arrow3d' );
	f.setInput( 0, startpt );
	f.setInput( 1, endpt );
	var arrow = f.calculate().item(0);
	moi.geometryDatabase.addObject( arrow );
	f.cancel();

- Michael

---

Thank you Michael.
- Brian

---

So new nodes in perspective! :)

---

Section r2d3

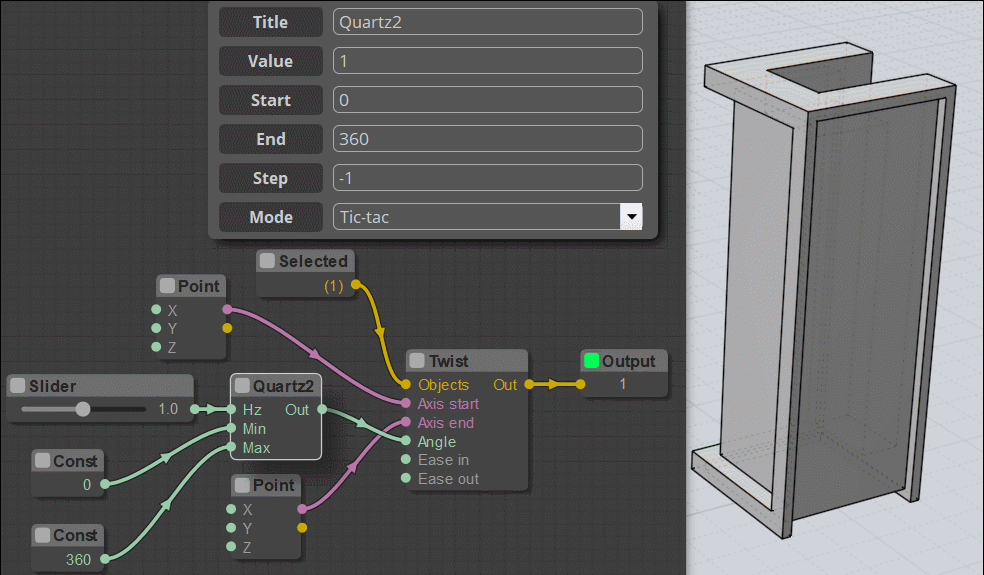

Quartz2 Node
English
http://moiscript.weebly.com/r2d3.html#quartz2

---

Section r2d3

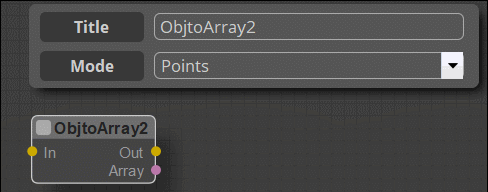

ObjToArray2

Difference than native ObjToArray is "StartEnd" but i don't know what is it! :)


Thanks to show me an example!

---

Section r2d3
Camera2 Node

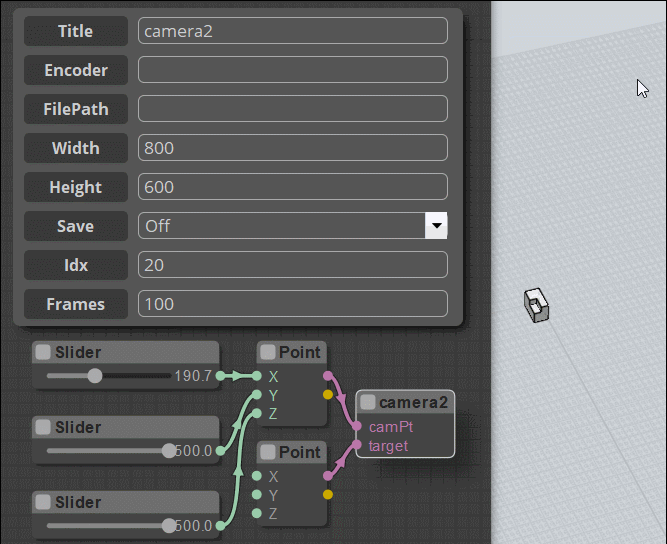

What is effect of Idx ? Encoder ? Effect of save (i suppose save to file ?) and how to enable it ? (press something ?)

---

Hi Pilou.
I did a little testing with r2d3's camera1.nod. https://moi3d.com/forum/index.php?webtag=MOI&msg=7777.861

With Frames set to, for example, 100
Frames is the number of camera pictures as test1.png, test2.png, ... test100.png, which can be snapped (picture taken).
(So maybe set Frames to say 10, for testing purposes.)

Idx is the actual number of pictures which are in the process of being taken during a Run.

I used a USB stick for the File Path entry: H:\

I placed an Ascher diamond at the origin, in Top View, for a Target.

So now, with Idx set to 0, turn Save to ON, and press Run.
100 png pictures will be taken of the Ascher diamond as it rotates, and placed in 100 png files in the H:\ directory.
(Not a very exciting set of pictures:-)
The Idx count of pictures taken increases up to 100.

Then I guess some other software can be used to make a movie from the png's

- Brian

ps Setting File Path entry to: H:\Ascher will create the png's with Aschertest1.png, Aschertest2.png,... , in the H:\ directory.

Setting File Path entry to: H:\Ascher\ with the ending backslash, will use the subdirectory Ascher for the saved files test1.png, test2.png, etc.
(The subdirectory Ascher must be manually created under H:\ before using it as the File Path entry.)

Encoder or Enc, seems to be set to .png by default, although there is also .avi in the next line of code. .avi does not seem to be used. ???
I do not know how or if Camera2 can make a video. Maybe someone else can decipher the camera2 video code?
The old Camera code mentions ffmpeg. Also jones. Maybe some other software is needed?

To re-run the camera with save, reset the Idx value to 0.

---

Thx i will examine that!

---

In fact there was a ready macro by d2r3

So...

Section d2r3
Camera2 Node
English
http://moiscript.weebly.com/r2d3.html#camera2

---

Should have a number of decimal!!! :)

Section Infos
Curve Length Node
English
http://moiscript.weebly.com/infos.html#curvelength

---

Section Infos
BoundingBox Infos
English

http://moiscript.weebly.com/infos.html#boundingboxinfos

---

It appears that the camera is moving, not the target.
The camera can move in many directions, not just revolving around the target.
Edit, As per Pilou, the target can also move:-)

Typo: Save is On or Off, not Own.

Some clarification of how to make an mpeg or avi would be nice.

Frame I understand to be one picture, in camera language, rather than MoI frame, although maybe they are interrelated?

- Brian

---

Why not ? You must just drawing something moving...

---

Touche'

---

Sections Infos
Curvature Node
English

http://moiscript.weebly.com/infos.html#curvature

---

Section Infos
ShowFrame
English

http://moiscript.weebly.com/infos.html#showframe

---

Section Infos
BoundingBoxes Node
English

http://moiscript.weebly.com/infos.html#boundingboxes

---

Another time need to truncate the result! :)
Maths node has not this function and i don't see how enter inside Maths node another thing than the presets! :(
As soon as I enter another thing it's remplaced by a preset!
PS What is "STL" it's for Print 3D or it's another thing ?

Section Infos
StlVolume
http://moiscript.weebly.com/infos.html#stlvolume

---

From 2015, Dinos/Max Calculate volume from Stereolithograpy polygon triangles:
https://moi3d.com/forum/index.php?webtag=MOI&msg=7421.13
https://stackoverflow.com/questions/6518404/how-do-i-calculate-the-volume-of-an-object-stored-in-stl-files

Karsten 2017 Infonodes:
https://moi3d.com/forum/index.php?webtag=MOI&msg=7777.279

- Brian

Javascript has truncation functions. Maybe place a math node between Volume and Text, and use one of the Javascript truncate or round functions?
There is .toFixed(2)...StackOverflow has brief code to fix up .toFixed...
rounded_number = Math.round(number * 100) / 100 (from Geeks for Geeks)

To truncate an objectlist, I think there must be another node to do the truncation. An array type of node...?

Maybe Stream2Array? There is a "max" input...

---

I will exam all that...but i wish only nodes..not want to explore the code ;)
<< Maybe place a math node between Volume and Text
Yes how put materially another thing than the existing presets ???

Stream2Array? There is a "max" input ...what is the use of this Array ?

else

Section Infos
StlAera Node
English

http://moiscript.weebly.com/infos.html#stlaera

---
